水泥電阻 CEMENT RESISTER

Cement Resistor

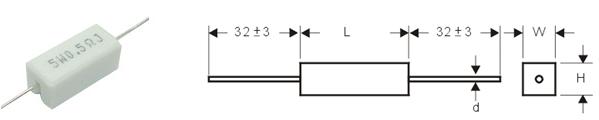

 SQP
 SQP
DIMENSIONS(mm)
RESISTANCE RANGE Ω
Max Working
Voltage
L ± 0.5
W ± 0.5
H ± 0.5
d ± 0.03
SQP
MO + SQP
2W
18.0
7.0
7.0
0.65
0.1 Ω ~ 50 Ω
50 ~ 20K Ω
150V
3W
22.0
8.0
8.0
0.8
0.1 Ω ~ 50 Ω
50 ~ 33K Ω
350V
5W
22.0
9.5
9.0
0.8
0.1 Ω ~ 50 Ω
50 ~ 50K Ω
350V
7W
35.0
9.5
9.0
0.8
0.1 Ω ~ 500 Ω
500 ~ 50K Ω
500V
10W
48.0
9.5
9.0
0.8
0.1 Ω ~ 500 Ω
500 ~ 50K Ω
750V
15W
48.0
12.5
12.0
0.8
0.1 Ω ~ 500 Ω
500 ~ 150K Ω
1000V
20W
60.0
14.0
13.0
0.8
0.1 Ω ~ 500 Ω
500 ~ 150K Ω
1000V
25W
60.0
14.0
13.0
0.8
0.1 Ω ~ 500 Ω
500 ~ 150K Ω
1000V
30W
77.0
18.0
17.0
0.8
0.1 Ω ~ 500 Ω
500 ~ 150K Ω
1000V
40W
90.0
19.0
18.0
0.8
0.1 Ω ~ 500 Ω
500 ~ 150K Ω
1000V

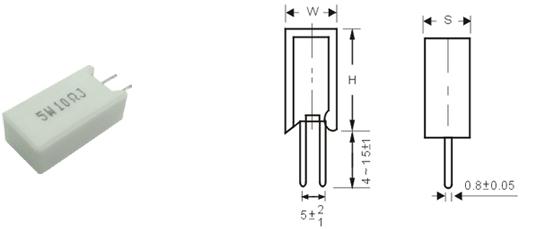

SQM
Type
DIMENSIONS(mm)
RESISTANCE RANGE Ω
SQM
H ± 1.5
W ± 1
S ± 1
SQM
MO + SQM
5W
25
13
9
0.1 Ω ~ 50 Ω
50 ~ 50K Ω
7W
39
13
9
0.1 Ω ~ 500 Ω
500 ~ 47K Ω
10W
51
13
9
0.1 Ω ~ 500 Ω
500 ~ 47K Ω
10WS
35
16
12
0.1 Ω ~ 500 Ω
500 ~ 47K Ω

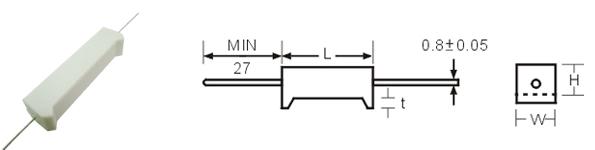

SQT
Type
DIMENSIONS(mm)
RESISTANCE RANGE Ω
SQT
W ± 1
H ± 1
L ± 1
t ± 0.5
SQT
MO + SQT
5W
10
9
22
1.5
0.1 Ω ~ 50 Ω
50 ~ 50K Ω
7W
10
9
35
3.0
0.1 Ω ~ 500 Ω
500 ~ 47K Ω
10W
10
9
48
3.0
0.1 Ω ~ 500 Ω
500 ~ 47K Ω
15W
12.5
12.5
48
3.0
0.1 Ω ~ 500 Ω
500 ~ 47K Ω
20W
13
14
60
5.0
0.1 Ω ~ 500 Ω
500 ~ 47K Ω

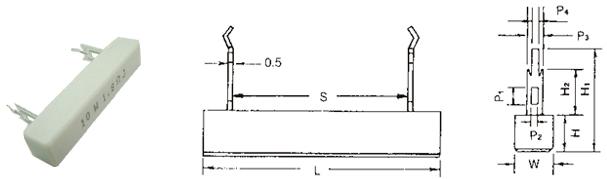

SQZ
Description
W
RESISTANCE RANGE Ω
DIMENSIONS(mm)
SQZ
MO + SQZ
L
H
W
S
H1
H2
P1
P2
P3
P4
　SQZ-5
5
0.1 ~ 100 Ω
100 Ω ~ 50K Ω
27.0
9.5
9.5
15.0
24.0
9.5
4.0
2.0
5.0
1.4
　SQZ-7
7
0.1~ 500 Ω
500 Ω ~ 50K Ω
35.0
9.5
9.5
22.5
24.0
9.5
4.0
2.0
5.0
1.4
　SQZ-10
10
0.2 ~ 500 Ω
500 Ω ~ 50K Ω
48.0
9.5
9.5
32.5
24.0
9.5
4.0
2.0
5.0
1.4
　SQZ-15
15
0.5~ 500 Ω
500 Ω ~ 150K Ω
48.0
12.5
12.5
32.5
34.5
15
7.0
6.0
10.0
2.7
　SQZ-20
20
1~ 50 Ω
500 Ω ~ 150K Ω
63.5
12.5
12.5
42.5
34.5
15
7.0
6.0
10.0
2.7
　SQZ-3S
3
0.1~ 50 Ω
50 Ω ~ 33K Ω
22.0
8.0
8.0
10.0
23.0
12
4.0
2.0
5.0
1.4
　SQZ-5S
5
0.1~ 50 Ω
50 Ω ~ 50K Ω
22.0
9.5
9.5
10.0
24.0
12
4.0
2.0
5.0
1.4

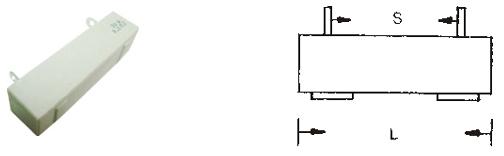

SQH

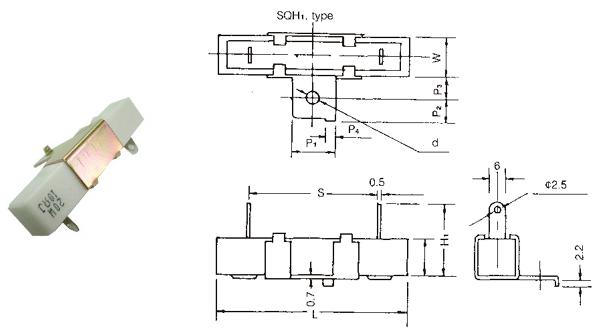

  SQHG
Type
W
RESISTANCE RANGE Ω
DIMENSIONS(mm)
SQH
MO + SQH
L±2
H±1
W±1
S±1
H±1
P1±1
P2±1
P3±1
P4±1
d
SQH-10
10
0.5 Ω ~ 100 Ω
500 Ω ~ 50K Ω
48.0
10.0
10.0
33
21
12
6
8.0
3.0
4
SQH-15
15
1 Ω ~ 500 Ω
500 Ω ~ 150K Ω
48.0
12.0
12.0
33
21
12
6
8.0
3.0
4
SQH-20
20
1 Ω ~ 500 Ω
500 Ω ~ 150K Ω
63.7
12.0
12.0
42
24
12
6
8.0
3.0
4
SQH-30
30
1 Ω ~ 500 Ω

75.0
19.0
18.0
56
30
17
8
10.0
3.0
4
SQH-40
40
1 Ω ~ 500 Ω

90.0
19.0
18.0
68
30
17
8
10.0
3.0
4

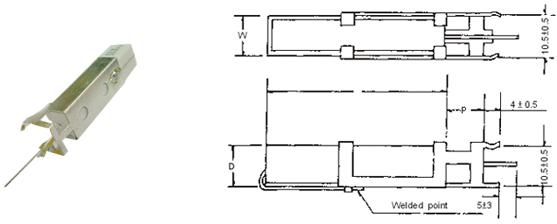

SQS


Style
DIMENSIONS(mm ± 1mm)
RESISTANCE RANGE Ω

W
D
L
P
Wirewound
RS
SQS-5
10
9
22
5
0.1 Ω ~ 200 Ω
200 Ω ~ 50K Ω
SQS-7
10
9
35
10
0.1 Ω ~ 300 Ω
300 Ω ~ 50K Ω
SQS-10
10
9
48
10
0.1 Ω ~ 500 Ω
500 Ω ~ 50K Ω
SQS-20
60
14
13
10
0.1 Ω ~ 500 Ω
500 Ω ~ 50K Ω
