碳膜晶圓電阻 Carbon Film Resistor
|
Carbon Film Resistor
|
|
POWER PATING
|
MAXIMUX
WORKING
VOLTAGE
|
MAXIMUX
OVERLOAD
VOLTAGE
|

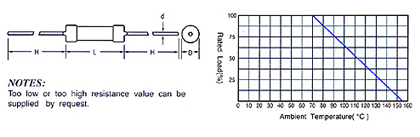

DIMENSIONS(mm)
|
RESISTANCERANGE
|
|
L
|
D
|
H
|
d±0.02
|
|
1/6W.1/8W
|
200V
|
400V
|
3.2±0.2
|
1.5±0.2
|
28±2.0
|
0.45
|
STANDARD
1Ω~10MΩ
|
|
1/4WS
|
250V
|
500V
|
3.2±0.2
|
1.5±0.2
|
28±2.0
|
0.45
|
|
1/4W
|
250V
|
500V
|
6.0±0.5
|
2.3±0.5
|
28±2.0
|
0.55
|
|
1/2WS
|
350V
|
700V
|
6.0±0.5
|
2.3±0.5
|
28±2.0
|
0.55
|
|
1/2W
|
350V
|
700V
|
9.0±0.5
|
3.2±0.5
|
28±2.0
|
0.60
|
|
1W
|
500V
|
1000V
|
11.0±1.0
|
4.0±0.5
|
35±3.0
|
0.80
|
|
2WS
|
500V
|
1000V
|
11.0±1.0
|
4.0±0.5
|
35±3.0
|
0.80
|
|
2W
|
500V
|
1000V
|
15.0±1.0
|
5.0±0.5
|
35±3.0
|
0.80
|
|
3W
|
500V
|
1000V
|
17.0±1.0
|
6.0±0.5
|
35±3.0
|
0.80
|
|
Test ltems
|
Condition
|
Spec
|
|
Short Time Overload
|
2.5 times of RCWV for 5 secs
|
±(2%+0.05Ω)
|
|
Load life
|
70°Cat rated power 1.5hrs on;0.5hr off for 1000hrs
|
±(5%+0.05Ω)
|
|
Dielectric Withstanding Voltage
|
Max Overload Voltage 1 Minute
|
±(0.5%+0.05Ω)
|
|
Temp. Cycling
|
-30°C/+85°Cfor 5 cycles
|
±(1%+0.05Ω)
|
|
Insulation Resistance
|
D.C 500V
|
1000MΩ
|
|
Moisture-Proof Load Life
|
40°C95% RH 1.5 hrs on 0.5 hr off for 1000 hrs
|
±(5%+0.05Ω)
|
|
Soldering Heat Resistance
|
350°Cfor 3.5 secs
|
±(2%+0.05Ω)
|
|
ppm / °C
Temp. Coeff
|
Type卅T.C.
|
0~450
|
0~700
|
0~1000
|
0~1300
|
|
1/6W.1/8W
|
‹47KΩ
|
51KΩ~100KΩ
|
110KΩ~330KΩ
|
Over 360KΩ
|
|
1/4W & OVER
|
‹100KΩ
|
110KΩ~1MΩ
|
1.1MΩ~2.2MΩ
|
Over 2.4MΩ
|
RCWV:Rated Continuous Working Voltage
|
|
|
